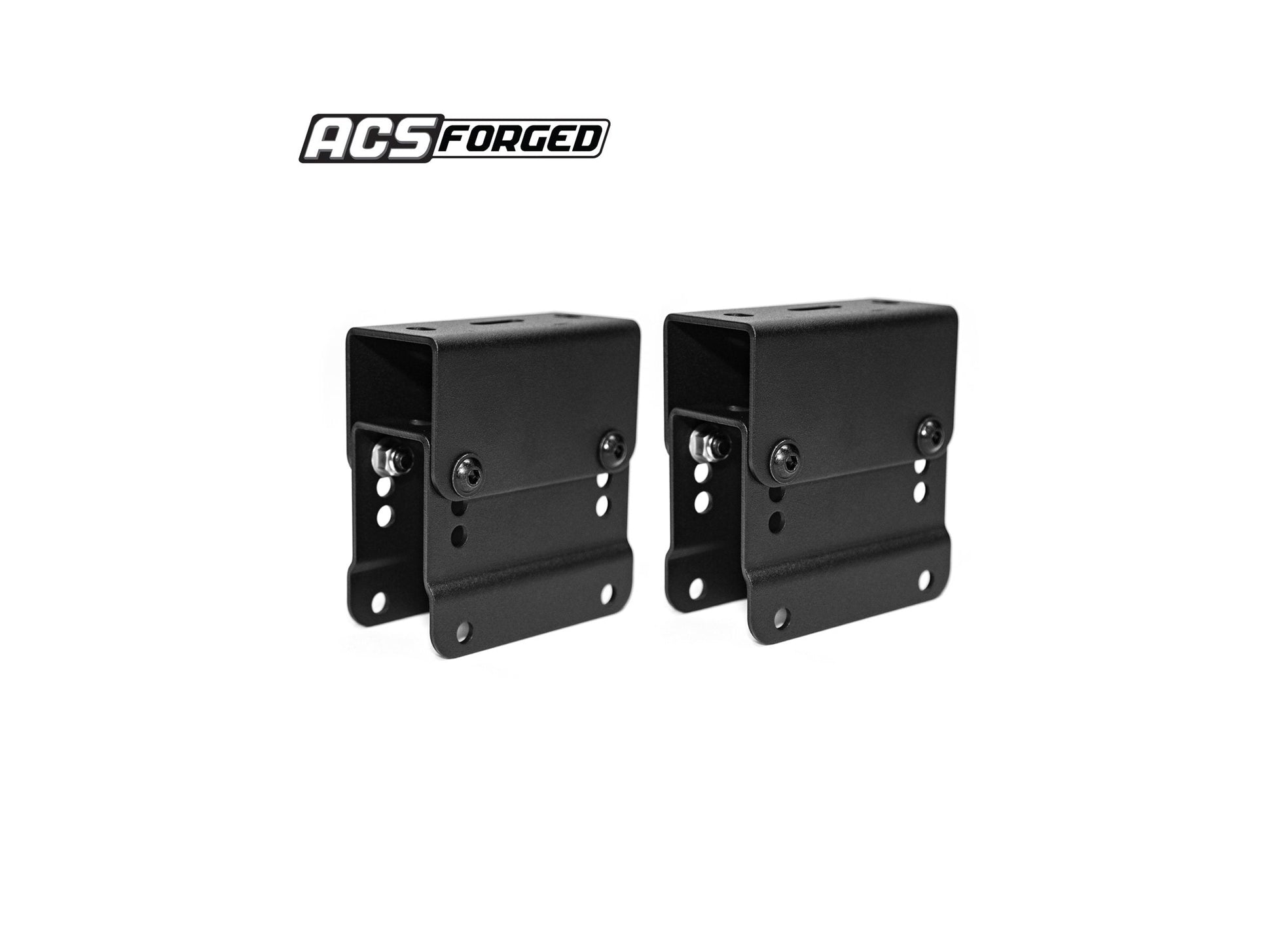

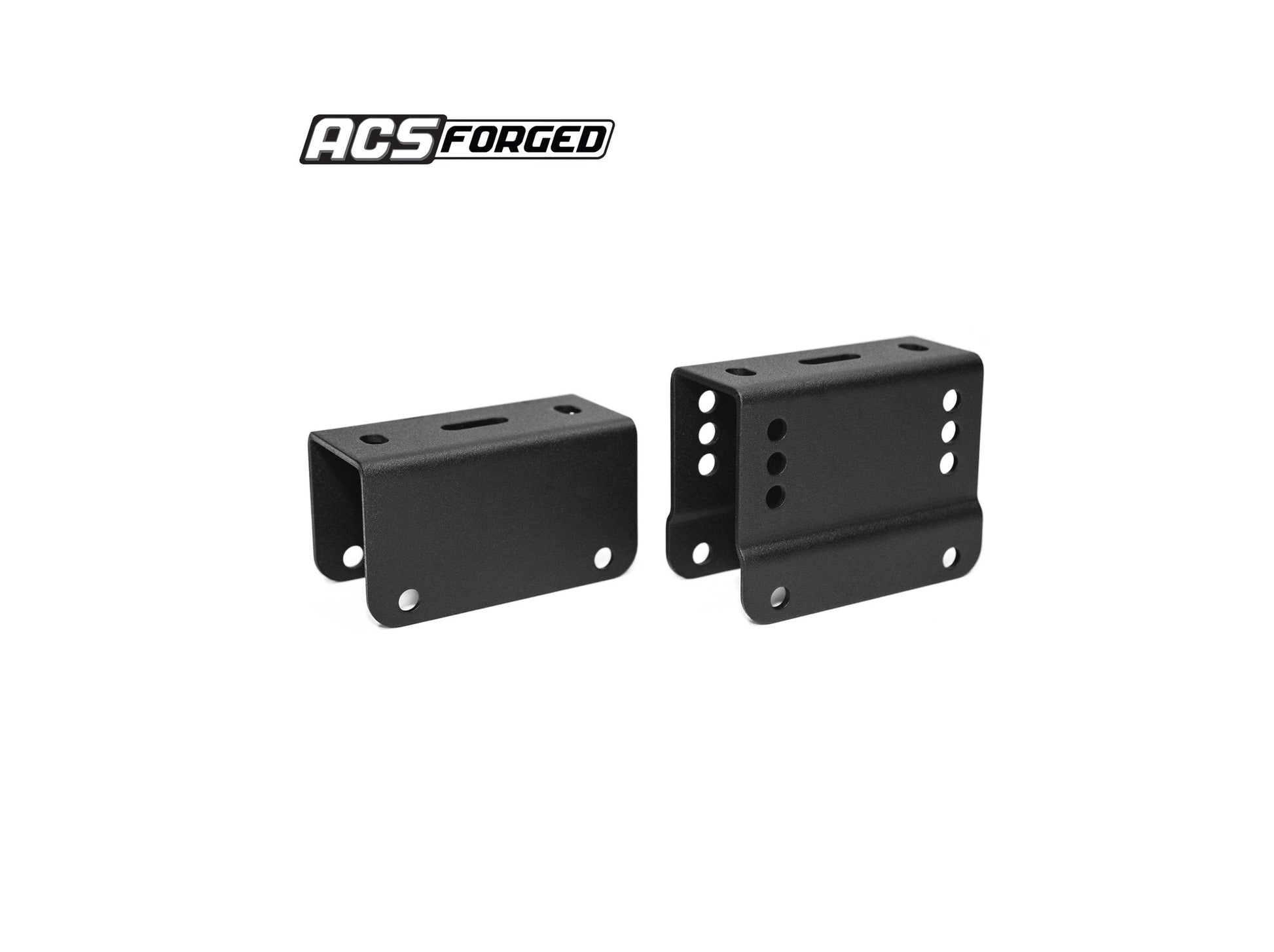

LOAD BAR RISER KIT for ACS FORGED

PART# 00-FRK-1350

The stock height of the ACS forged load bars is 58cm above the bed rails. In some situations, you might want to raise one or both load bars. Carrying long items such as lumber ladders or Kayaks? Get a lift up with the ACS Forged Riser Kit! These brackets are adjustable to raise the load bar height of the ACS FORGED by 38mm, 63mm, 76mm, 89mm and 101mm. Each riser kit will lift one load bar. You will need to purchase 2 sets to lift both load bars included in the ACS FORGED.

Specifications: Active Cargo System- FORGED Truck Bed Rack Load Bar Riser Kit

• Dual-stage Powder Coated Steel

• Adjustable to raise the load bar by 38mm, 63mm, 76mm, 89mm and 101mm

• Grade 10.9 Black Zinc- Nickle plated fasteners

• Weight 2 kg

• Designed, engineered and manufactured in the USA

Installation Instructions
