WIRELOK WIRE GUIDE SYSTEM

PART# 00-WL460-1371

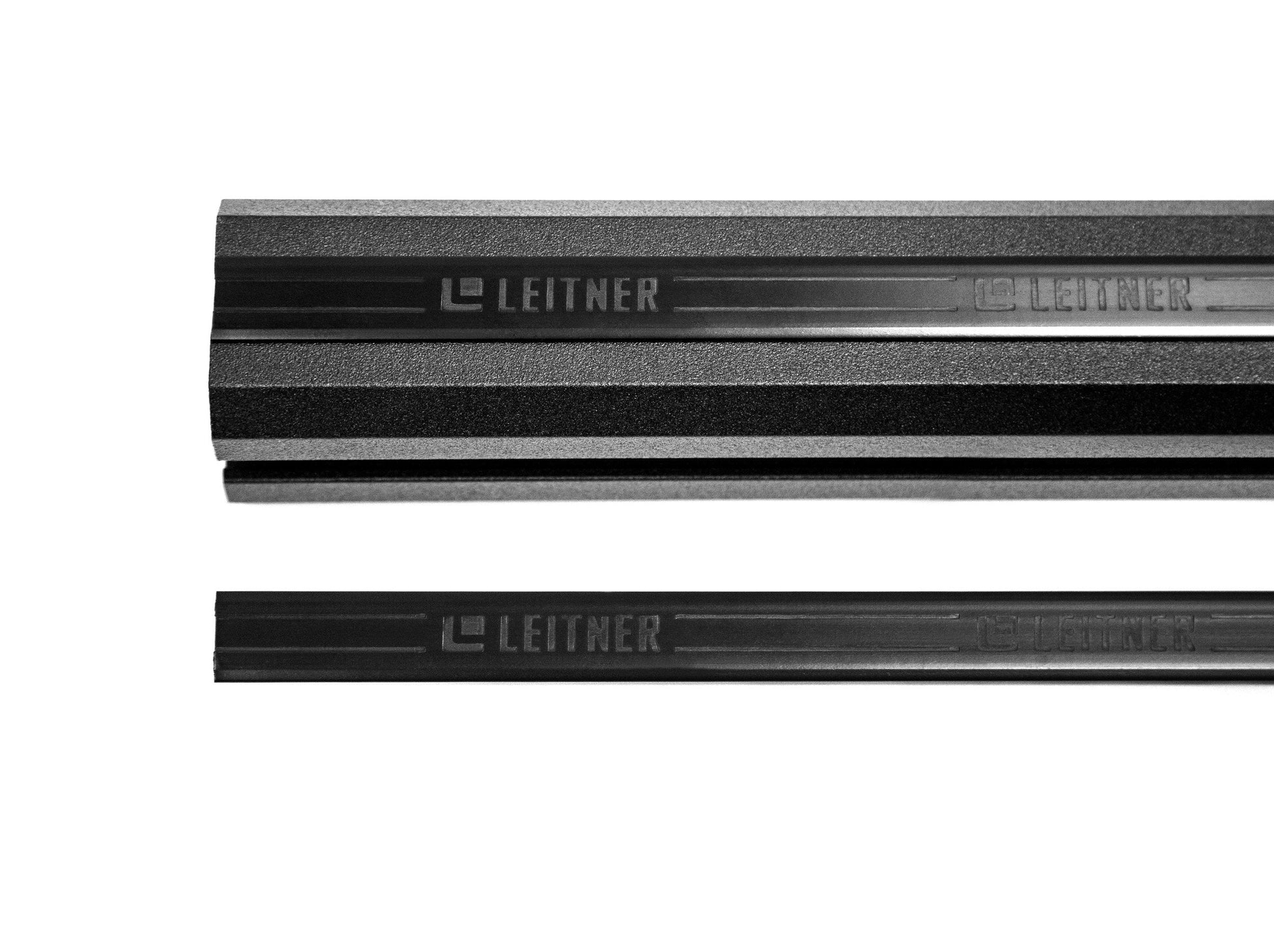

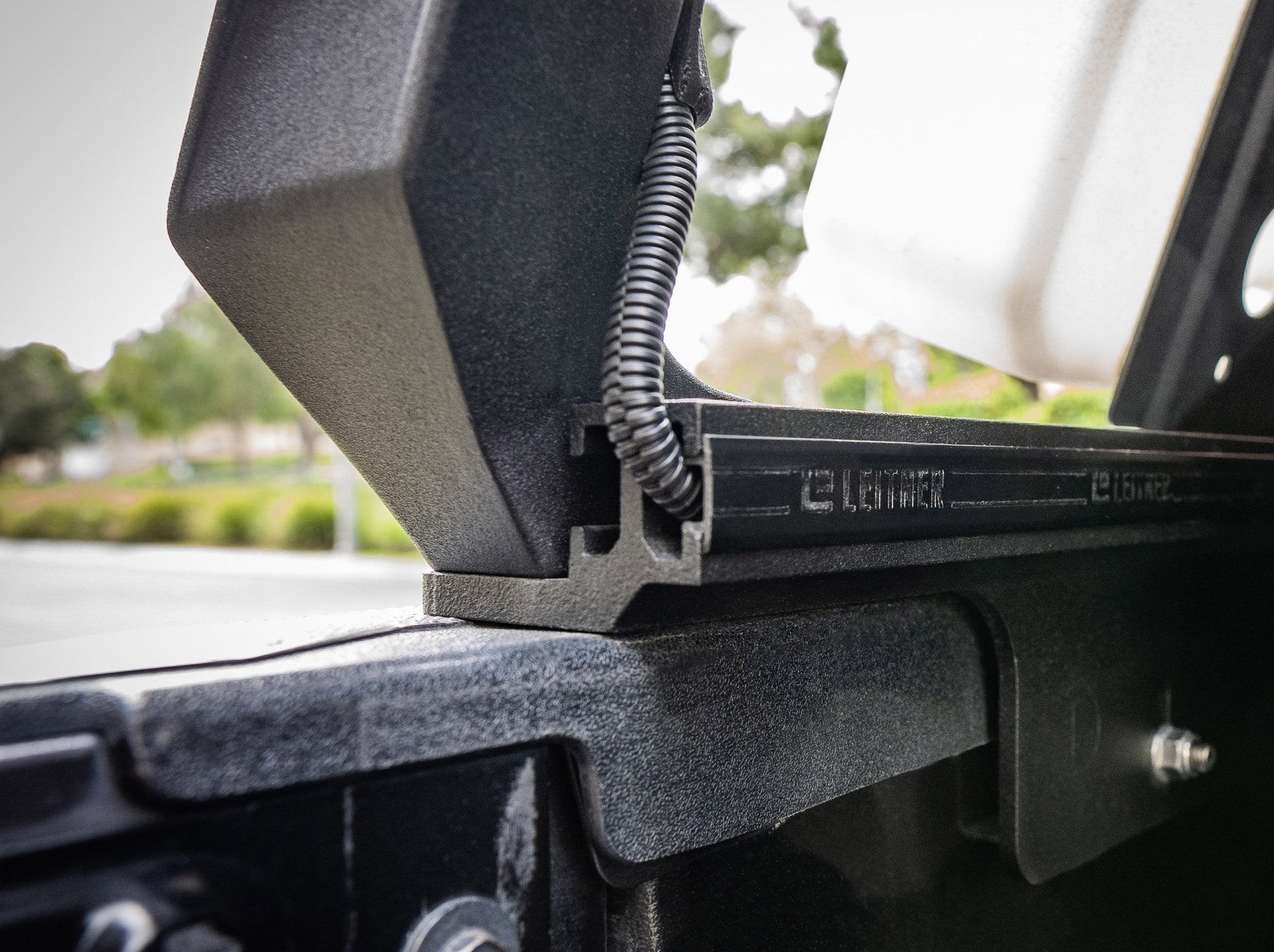

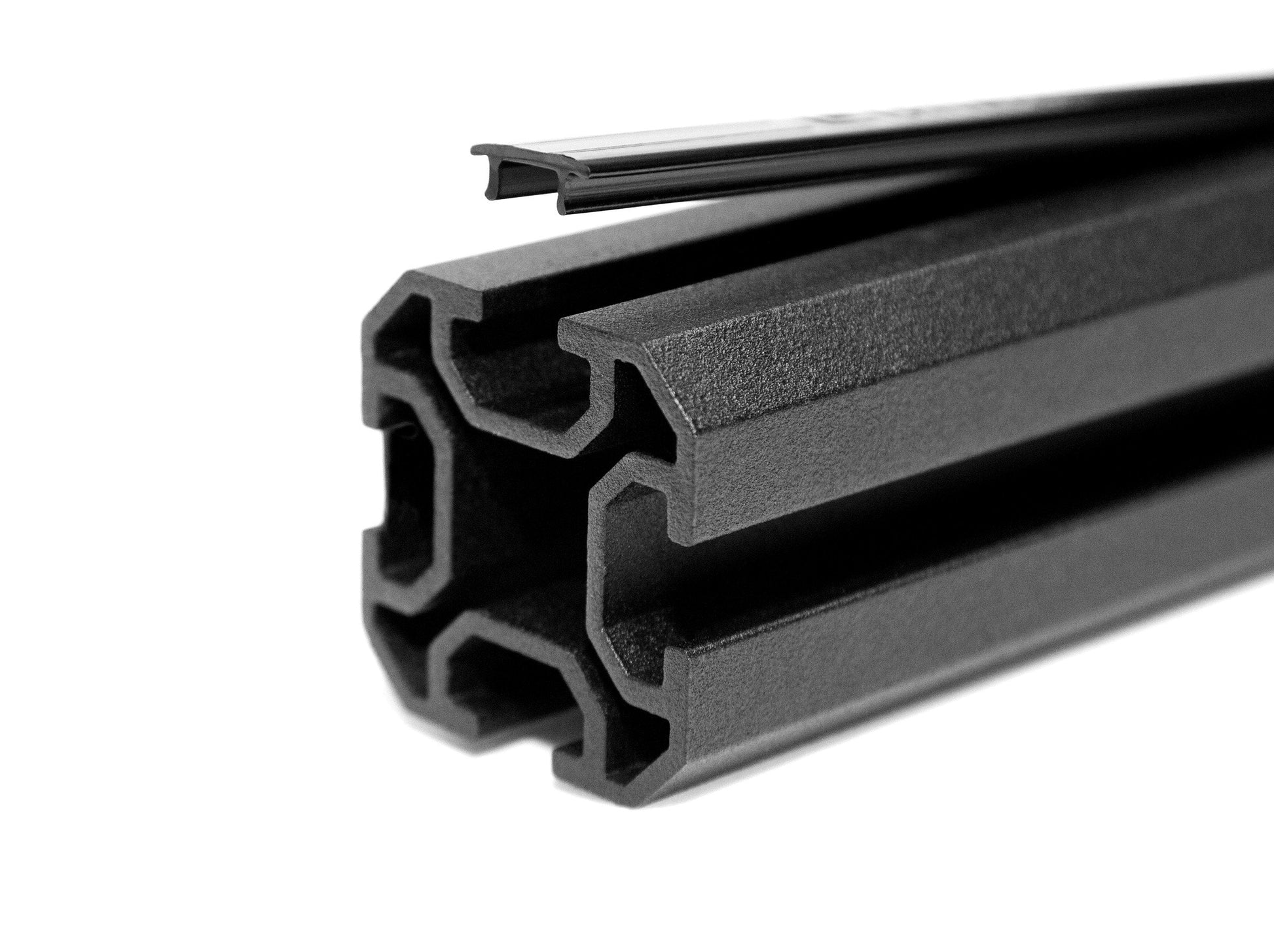

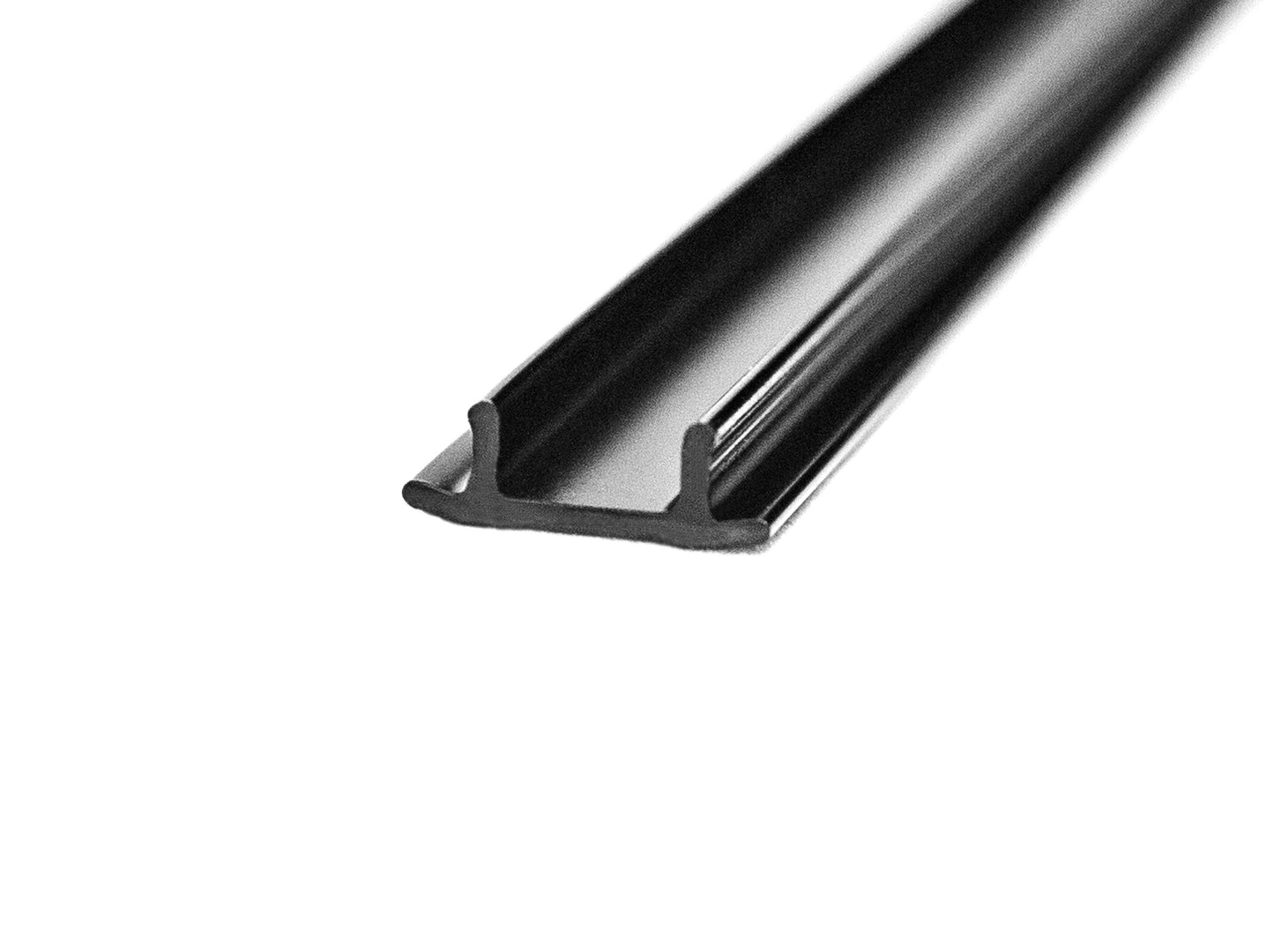

The WireLok wire guide management system by Leitner is a new way to rout your power cables on the ACS. Made from ASA composite the Wirelok snaps into place on any of the 20 T-channels on the ACS System. The WireLok offers the ultimate clean install without using cable ties or other fastening method.

• Easy install – Snaps into place without tools
• ASA composite – The ultimate material for UV and weather resistance
• Large capacity – Holds up to a 3/8⌀ (9mm) wire bundle in the T-slot

Specifications: WireLok wire guide

• 76cm long can be cut to any length with side cutters.
• Include four (8) 76cm long (+/- 1”) WireLok wire guides.
• Simple snap in installation.
• Weight: 110 grams
• Designed, engineered and manufactured in the USA
